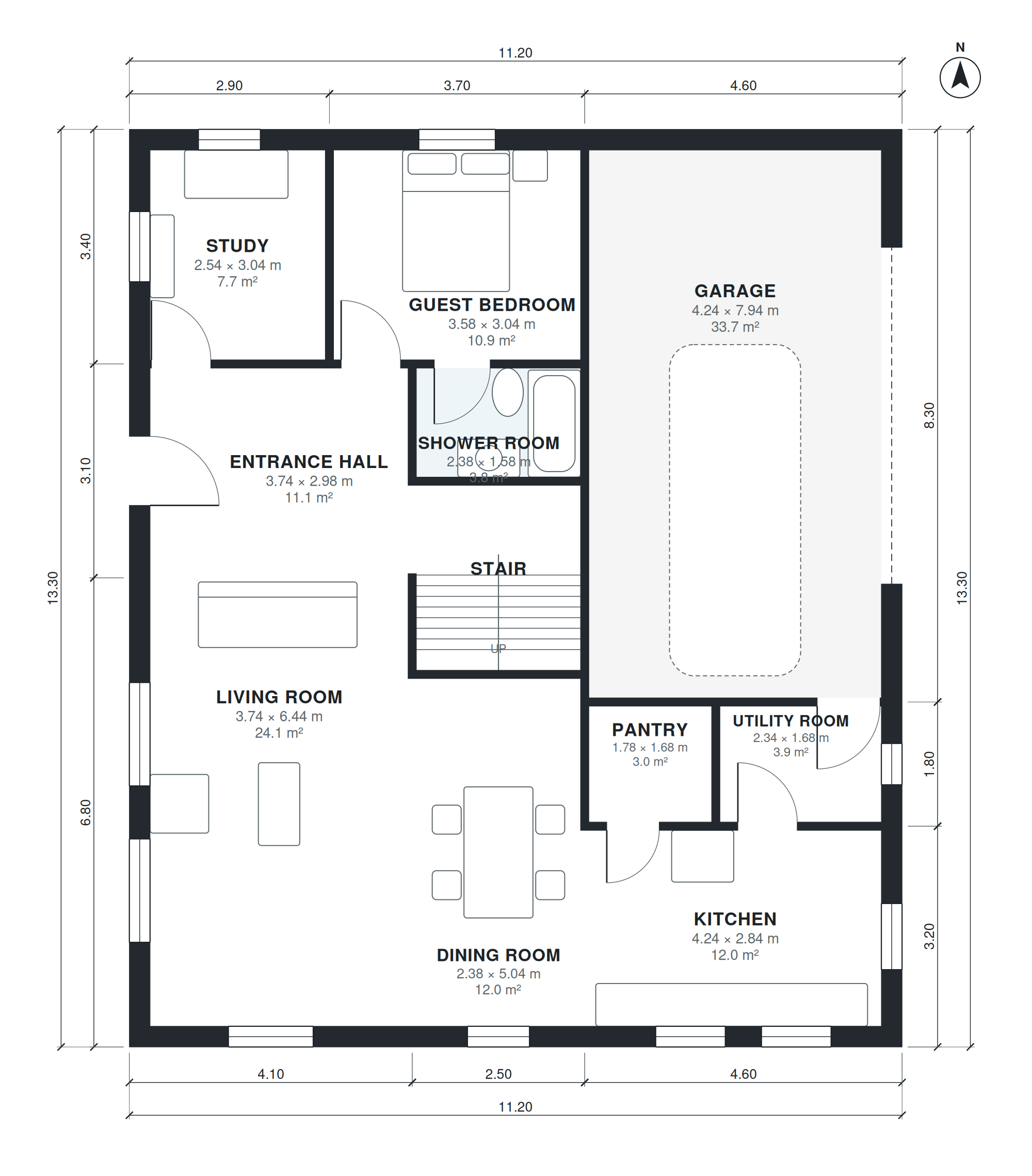

This two-story plan has 2,180 sq ft of living space, not counting the garage, on a footprint of 36'-9" × 43'-8". The entrance hall (12'-3" × 9'-9") leads into the living room at 12'-3" × 21'-2". The dining room (7'-10" × 16'-6") and the kitchen (13'-11" × 9'-4") share the same ground floor zone. A 5'-10" × 5'-6" pantry and a 7'-8" × 5'-6" utility room support the kitchen.

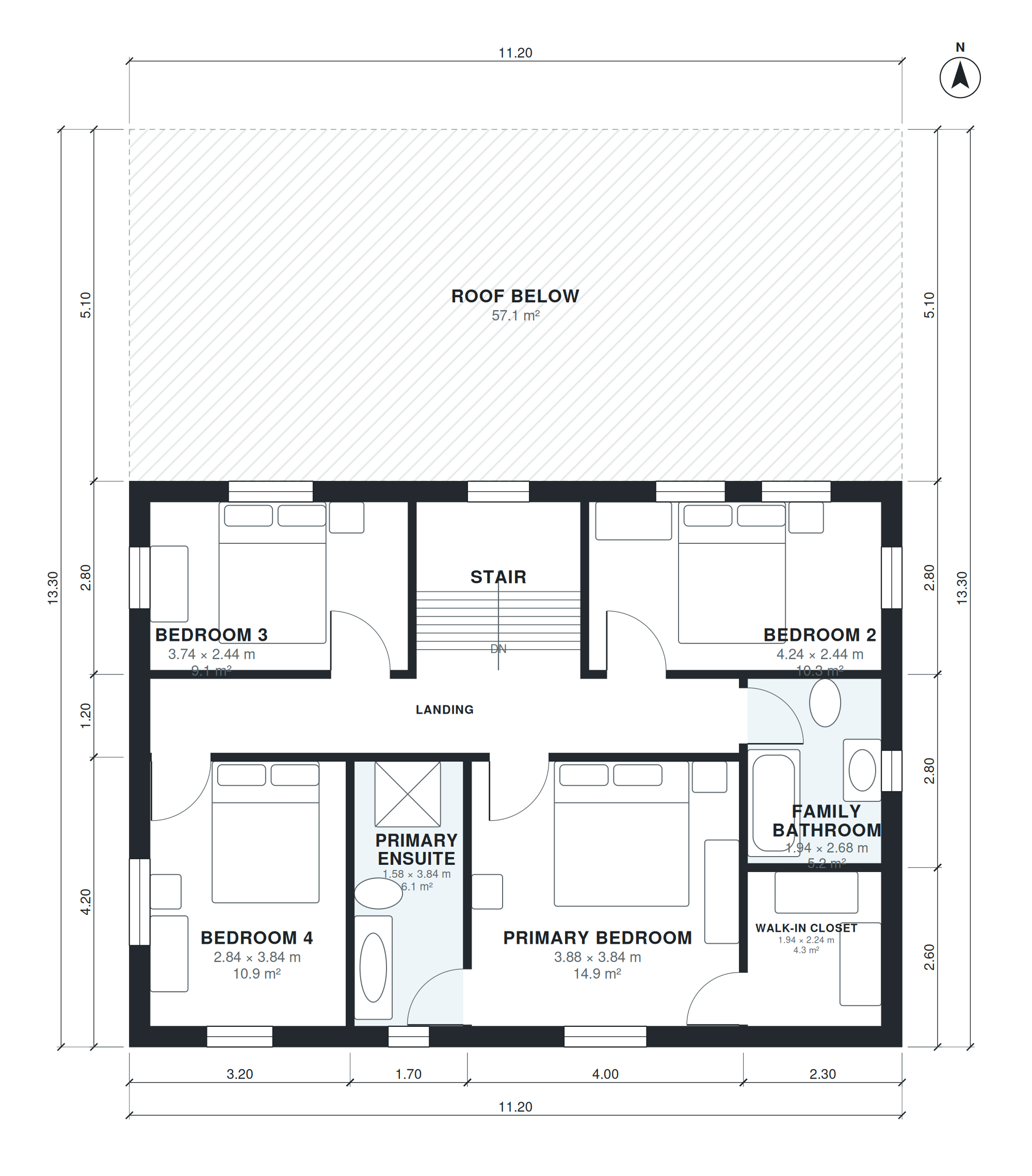

A study (8'-4" × 10'-0"), a guest bedroom (11'-9" × 10'-0") and a shower room (7'-10" × 5'-2") complete the ground floor. The attached garage measures 13'-11" × 26'-1". The stair (7'-10" × 8'-10") rises to a 28'-0" landing that connects the four upstairs bedrooms. The primary bedroom (12'-9" × 12'-7") has a 6'-4" × 7'-4" walk-in closet and a 5'-2" × 12'-7" ensuite. Bedrooms 2, 3 and 4 share a 6'-4" × 8'-10" family bathroom.
Layout highlights
- Living room of 12'-3" × 21'-2" next to a 12'-3" × 9'-9" entrance hall.
- Kitchen of 13'-11" × 9'-4" with a 5'-10" × 5'-6" pantry and a utility room.
- Ground floor guest bedroom (11'-9" × 10'-0"), shower room and study (8'-4" × 10'-0").
- Primary suite upstairs: 12'-9" × 12'-7" bedroom, walk-in closet and ensuite.
- Compact 36'-9" × 43'-8" footprint with a 13'-11" × 26'-1" attached garage.
Room sizes
| Room | Level | Size | Area |
|---|---|---|---|
| Living Room | 1 | 12'-3" × 21'-2" | 259 sq ft |
| Entrance Hall | 1 | 12'-3" × 9'-9" | 120 sq ft |
| Dining Room | 1 | 7'-10" × 16'-6" | 129 sq ft |
| Stair | 1 | 7'-10" × 8'-10" | 69 sq ft |
| Shower Room | 1 | 7'-10" × 5'-2" | 40 sq ft |
| Study | 1 | 8'-4" × 10'-0" | 83 sq ft |
| Guest Bedroom | 1 | 11'-9" × 10'-0" | 117 sq ft |
| Kitchen | 1 | 13'-11" × 9'-4" | 130 sq ft |
| Pantry | 1 | 5'-10" × 5'-6" | 32 sq ft |
| Utility Room | 1 | 7'-8" × 5'-6" | 42 sq ft |
| Garage | 1 | 13'-11" × 26'-1" | 362 sq ft |
| Stair | 2 | 7'-10" × 8'-0" | 63 sq ft |
| Bedroom 4 | 2 | 9'-4" × 12'-7" | 117 sq ft |
| Primary Ensuite | 2 | 5'-2" × 12'-7" | 65 sq ft |
| Primary Bedroom | 2 | 12'-9" × 12'-7" | 160 sq ft |
| Landing | 2 | 28'-0" × 3'-7" | 99 sq ft |
| Walk-in Closet | 2 | 6'-4" × 7'-4" | 47 sq ft |
| Family Bathroom | 2 | 6'-4" × 8'-10" | 56 sq ft |
| Bedroom 3 | 2 | 12'-3" × 8'-0" | 98 sq ft |
| Bedroom 2 | 2 | 13'-11" × 8'-0" | 111 sq ft |
Who this plan suits
This plan suits families who want five bedrooms, a ground floor guest room or study, and a separate primary suite upstairs. It needs a lot that fits the 36'-9" × 43'-8" footprint, with room for the attached garage and no basement.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Two-story house, 5 bedrooms, 3 baths, ground floor kitchen with pantry, dining, living, study, guest bedroom, shower room, utility room; upstairs primary suite and 3 bedrooms, attached 2-car garage, about 210 m² (2,260 sq ft) of living space (garage not included). Metric European / Latin American layout: compact rooms, no basement.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What are 210 square meter house plans?
They describe homes of roughly 210 m² of living space, usually laid out with compact rooms and no basement. This plan has 2,180 sq ft of living space across two levels, with the garage counted separately.
What affects the lot and building cost for this plan?
The 36'-9" × 43'-8" footprint sets the minimum lot width and depth, and setbacks add to that. Cost depends mainly on local labor, foundation type, finishes, and the two levels of plumbing for the three baths and kitchen.
Can I change this plan by chat?
Yes. You can ask for changes such as moving the garage to the other side, resizing or swapping rooms, or adapting the layout to a narrower lot. The plan is then regenerated with updated room sizes.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing the layout and sharing it with builders or clients. The DXF opens in CAD software for drafting and detailing, and the IFC imports into BIM tools such as Revit or ArchiCAD for coordination. Local code review and engineering are still needed before construction.
