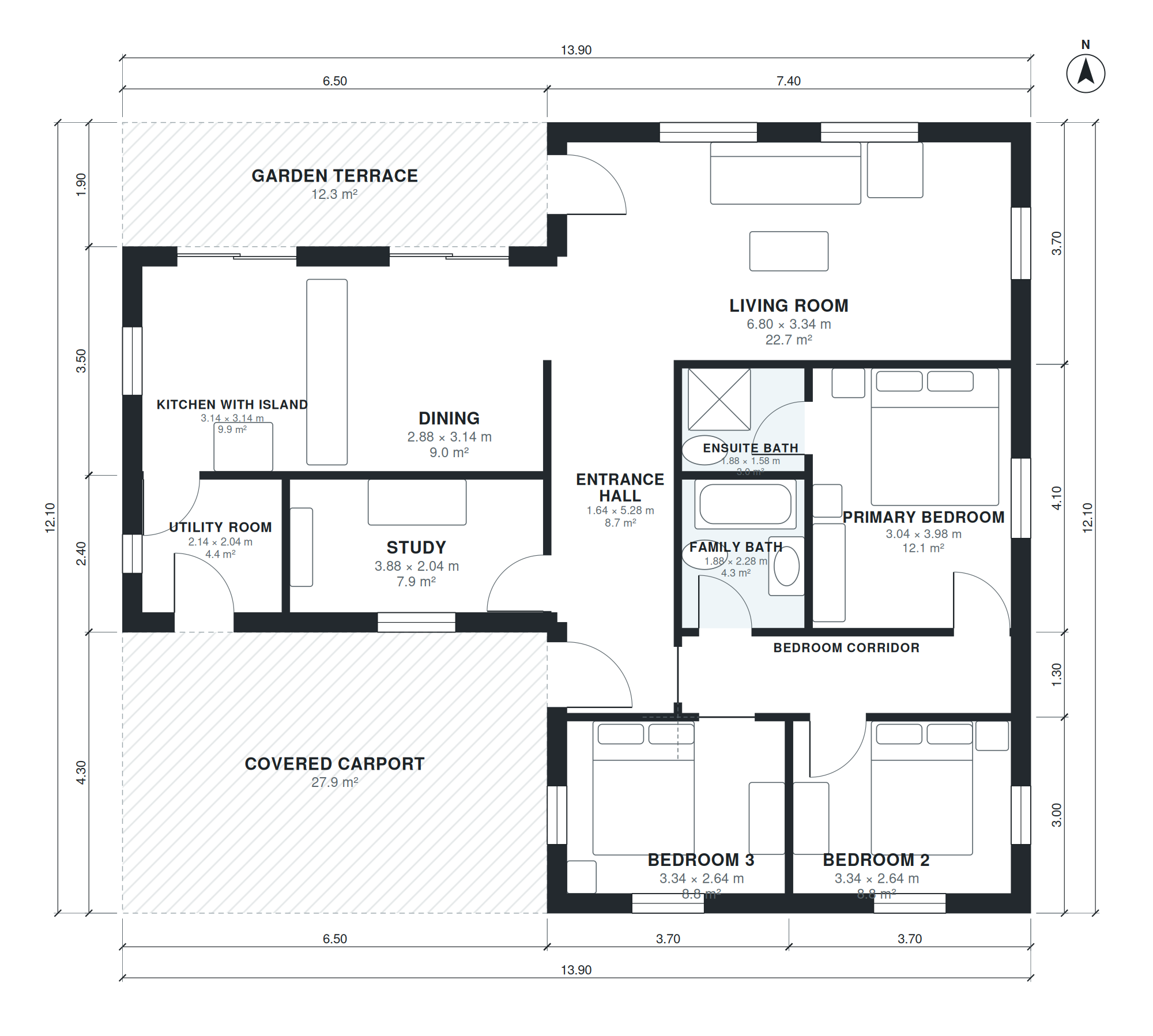

This modern bungalow with flat roof sits on one level and has 1,380 sq ft of living space, not counting the carport. The footprint measures 45'-7" × 39'-8". A covered carport for two cars sits at the front, and a 5'-5" × 17'-4" entrance hall leads into the house. There is no basement.
The living room (22'-4" × 10'-11"), dining area (9'-5" × 10'-4") and kitchen with island (10'-4" × 10'-4") make up the open social zone. Large glazing faces the garden terrace. The study (12'-9" × 6'-8") and utility room (7'-0" × 6'-8") are the working spaces. A 16'-6" × 3'-10" corridor serves the bedrooms: two at 10'-11" × 8'-8", and a primary suite at 10'-0" × 13'-1" with a 6'-2" × 5'-2" ensuite. The family bath is 6'-2" × 7'-6".
Layout highlights
- Living room of 22'-4" × 10'-11" opens toward the garden terrace through large glazing.
- Kitchen with island at 10'-4" × 10'-4" sits beside a 9'-5" × 10'-4" dining area.
- Separate study of 12'-9" × 6'-8" and a 7'-0" × 6'-8" utility room.
- Primary bedroom of 10'-0" × 13'-1" with its own 6'-2" × 5'-2" ensuite.
- Two bedrooms at 10'-11" × 8'-8" share a 6'-2" × 7'-6" family bath.
Room sizes
| Room | Size | Area |
|---|---|---|
| Utility Room | 7'-0" × 6'-8" | 47 sq ft |
| Study | 12'-9" × 6'-8" | 85 sq ft |
| Kitchen with Island | 10'-4" × 10'-4" | 106 sq ft |
| Dining | 9'-5" × 10'-4" | 97 sq ft |
| Bedroom 3 | 10'-11" × 8'-8" | 95 sq ft |
| Bedroom 2 | 10'-11" × 8'-8" | 95 sq ft |
| Entrance Hall | 5'-5" × 17'-4" | 93 sq ft |
| Bedroom Corridor | 16'-6" × 3'-10" | 64 sq ft |
| Family Bath | 6'-2" × 7'-6" | 46 sq ft |
| Ensuite Bath | 6'-2" × 5'-2" | 32 sq ft |
| Primary Bedroom | 10'-0" × 13'-1" | 130 sq ft |
| Living Room | 22'-4" × 10'-11" | 244 sq ft |
Who this plan suits
This plan suits a small household or family that wants three bedrooms, a study and a utility room on one level without stairs. It needs a lot that fits the 45'-7" × 39'-8" footprint plus the front carport and a garden on the glazed side.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Single-story house, 3 bedrooms, 2 baths, flat roof, large glazing to the garden, open kitchen with island, dining and living, study, utility room, covered carport for 2 cars at the front, about 125 m² (1,346 sq ft) of living space (garage not included). Metric European / Latin American layout: compact rooms, no basement.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What is a modern bungalow with flat roof house plan?
It is a single-story home with a flat or very low-slope roof and clean, simple massing. This plan keeps all 1,380 sq ft of living space on one level, with large glazing toward the garden.
What affects the cost of building this plan?
The main drivers are the 45'-7" × 39'-8" footprint, the flat roof waterproofing and drainage detail, and the amount of large glazing. Local labor, soil conditions, finishes and the carport structure also change the total, so get a local quote.
Can I change this plan by chat?
Yes. You can ask to resize or rearrange rooms, move the carport to another side, convert it to a garage, or adapt the plan to a narrower or wider lot. The layout is then regenerated with the new dimensions.
How do I use the PDF, DXF and IFC files?
The PDF is for reviewing and sharing the plan, including with builders and local authorities. The DXF opens in most CAD programs for editing 2D drawings, and the IFC loads into BIM tools for a 3D model. Your engineer or local designer should check the plan against local codes before construction.
