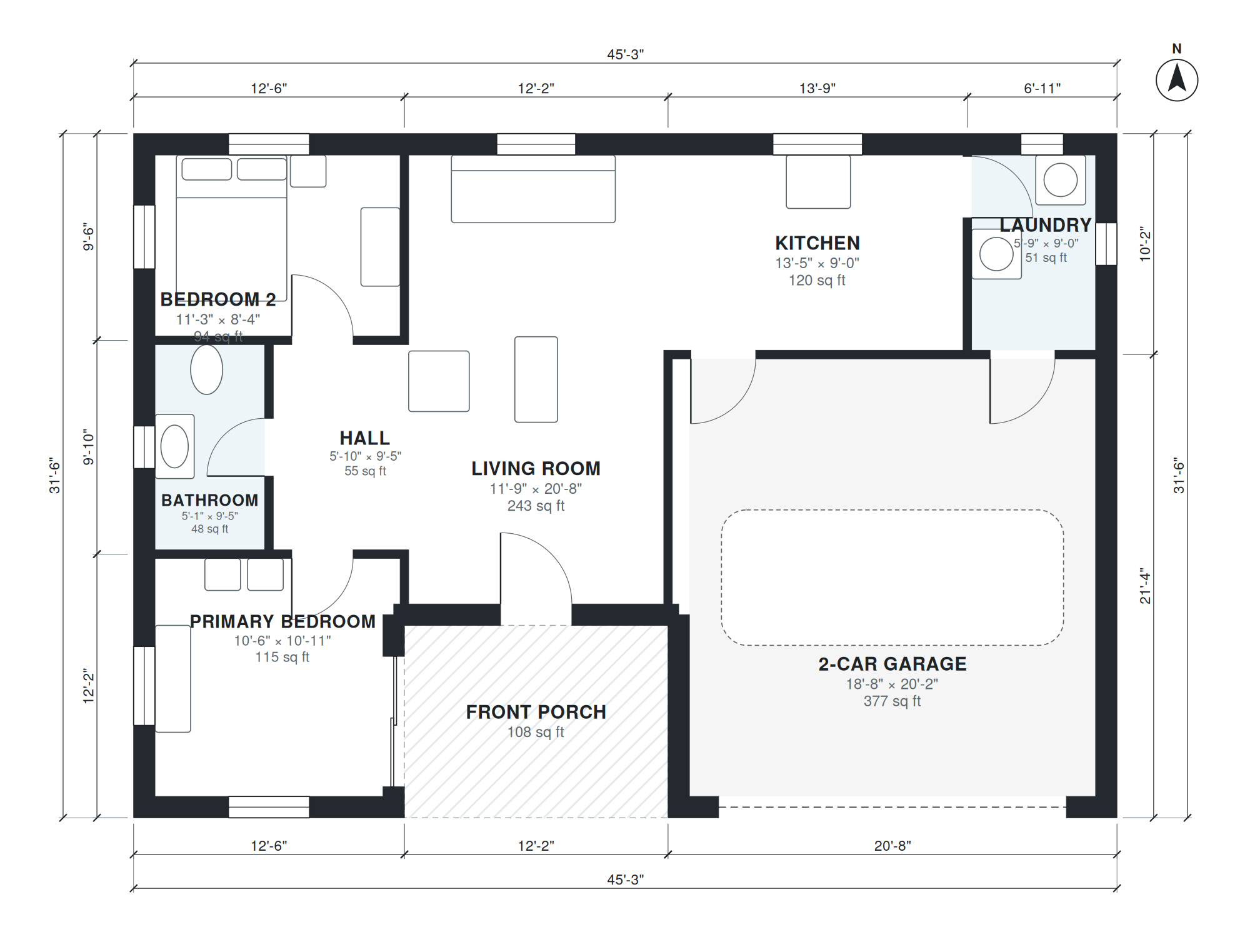

This small barndominium with garage plan puts 880 sq ft of living space on one level, inside a 45'-3" × 31'-6" footprint. A front porch leads into the living room, which measures 11'-9" × 20'-8" and sets the main axis of the house. The kitchen, at 13'-5" × 9'-0", sits beside it, so cooking, dining and sitting share one open zone.
The sleeping area is kept compact. A 5'-10" × 9'-5" hall serves the primary bedroom at 10'-6" × 10'-11", the second bedroom at 11'-3" × 8'-4", and the 5'-1" × 9'-5" bathroom. A 5'-9" × 9'-0" laundry room handles household chores. The attached 2-car garage, 18'-8" × 20'-2", sits under the same roof. Living square footage does not include the garage.
Layout highlights
- Open living room at 11'-9" × 20'-8" anchors the single-level plan.
- Kitchen measures 13'-5" × 9'-0" and opens to the living space.
- Primary bedroom is 10'-6" × 10'-11"; bedroom 2 is 11'-3" × 8'-4".
- Separate laundry room, 5'-9" × 9'-0", keeps appliances out of the kitchen.
- Attached 2-car garage, 18'-8" × 20'-2", shares the roof of the 45'-3" × 31'-6" footprint.
Room sizes
| Room | Size | Area |
|---|---|---|
| Primary Bedroom | 10'-6" × 10'-11" | 115 sq ft |
| Bathroom | 5'-1" × 9'-5" | 48 sq ft |
| Hall | 5'-10" × 9'-5" | 55 sq ft |
| Bedroom 2 | 11'-3" × 8'-4" | 94 sq ft |
| Living Room | 11'-9" × 20'-8" | 243 sq ft |
| 2-Car Garage | 18'-8" × 20'-2" | 377 sq ft |
| Kitchen | 13'-5" × 9'-0" | 120 sq ft |
| Laundry | 5'-9" × 9'-0" | 51 sq ft |
Who this plan suits
This plan suits couples, small households, or owners of a weekend or guest property who want two bedrooms, one bath and covered parking in one building. It needs a lot that can hold a 45'-3" × 31'-6" footprint plus driveway access to the garage.
How this plan was made
It was generated in AI Architectures Plan Studio from this one-line brief: “Small barndominium with an attached 2-car garage under the same roof: 2 bedrooms, 1 bath, open kitchen and living, laundry, porch, about 1,000 sq ft of living space.” An AI architect drafted the room program, a layout solver placed every wall and door, and the plan was checked automatically for room sizes, circulation and daylight. The same project produced the PDF sheets, layered DXF, IFC model and 3D model you can download above.
Frequently asked questions
What is a small barndominium with garage house plan?
It is a compact barn-style home with living space and an attached garage under one roof. This version has 880 sq ft of living space, 2 bedrooms, 1 bath and a 2-car garage, all on one level.
What affects the cost and lot needs of this plan?
The 45'-3" × 31'-6" footprint sets the minimum lot size, and setbacks and driveway position add to it. Cost depends on your region, foundation type, roof and wall systems, finishes, and utility connections. A local builder can price it from the plan files.
Can I change this plan by chat?
Yes. You can ask for changes such as resizing rooms, moving the garage to the other side, or adjusting the plan for a narrower or wider lot. The layout is updated to match your request.
How do I use the PDF, DXF and IFC files?
The PDF is for review, sharing and permit discussions. The DXF opens in CAD software for drafting and edits, and the IFC imports into BIM tools for 3D coordination. Have a local engineer or designer check the plan against your site and code.
